FactoryTalk Optix introduces a new approach to industrial visualization. It goes beyond traditional HMI software, providing a comprehensive platform that combines HMI, SCADA, and edge data management within a single environment.It is designed for OEMs, system integrators, and end users who need to standardize, scale, and integrate visualization systems without technological limitations.
As industrial automation evolves, requirements around flexibility, interoperability, and structured data access are becoming more demanding. FactoryTalk Optix addresses these challenges by enabling the development and deployment of modern applications while maintaining full control over the project lifecycle—from design and validation to runtime and data management.
Who FactoryTalk Optix is designed for
OEMs and Machine Builders
FactoryTalk Optix helps machine builders reduce development time and streamline project delivery through a flexible and efficient engineering environment:
- Free development software with intuitive drag-and-drop configuration
- Advanced customization through C-based scripting
- Ability to test and validate applications before purchasing runtime licenses
The platform ensures scalability across different project sizes:
- Single platform for machine-level HMI, line control, or full SCADA systems
- Seamless transition from XS to Unlimited runtime without rewriting applications
- Vector-based responsive graphics that automatically adapt to displays from 4.3″ to 21.5″
The closed operating system architecture removes the need for antivirus, making it suitable for secure industrial environments.
System Integrators
FactoryTalk Optix is built to simplify integration in complex and heterogeneous automation architectures:
- Native support for OPC UA and MQTT
- Built-in drivers for Rockwell PLCs and third-party devices
- Easy integration across multi-vendor environments
Collaboration is enhanced through cloud-based tools:
- Multiple users can work simultaneously on the same project
- Automatic change tracking and version control
- Ideal for distributed engineering teams
Flexible deployment options include:
- OptixPanel operator panels
- Industrial PCs running Windows or Linux
- Web-based thin clients
A single runtime license can support distributed architectures. Remote access is already embedded via FactoryTalk Remote Access, eliminating the need for dedicated VPN solutions.
Maintenance and End Users
From an operational standpoint, FactoryTalk Optix centralizes key functionalities for monitoring and analysis:
- Real-time dashboards and alarm management
- Integrated data logging for continuous data collection
- Connectivity to both on-premise and cloud-based databases
These capabilities support:
- Fault analysis
- KPI monitoring
- Predictive maintenance strategies
The user interface is designed for ease of use:
- Intuitive navigation
- Multi-touch gestures (swipe, pinch) similar to consumer devices
- Reduced operator training time
Standardized hardware connections also simplify panel replacement and upgrades without impacting the software layer.
Software Platform – FactoryTalk Optix Studio
FactoryTalk Optix Studio is the development environment that combines ease of use with advanced engineering capabilities:
- Drag-and-drop graphical design
- Full C-language scripting support
- Development, testing, and validation before runtime licensing
The platform is natively cloud-enabled:
- Multi-user access in real time
- Automatic project versioning
- Optimized for distributed teams
From a connectivity perspective, it includes:
- Native drivers for Rockwell PLCs
- OPC UA and MQTT support
- IIoT connectivity for third-party systems
- Multilanguage management via customizable dictionaries
FT Optix Runtime licenses are scalable (XS, Small, Medium, Large, XL, Unlimited), following a clear model: you only pay based on the actual application requirements.

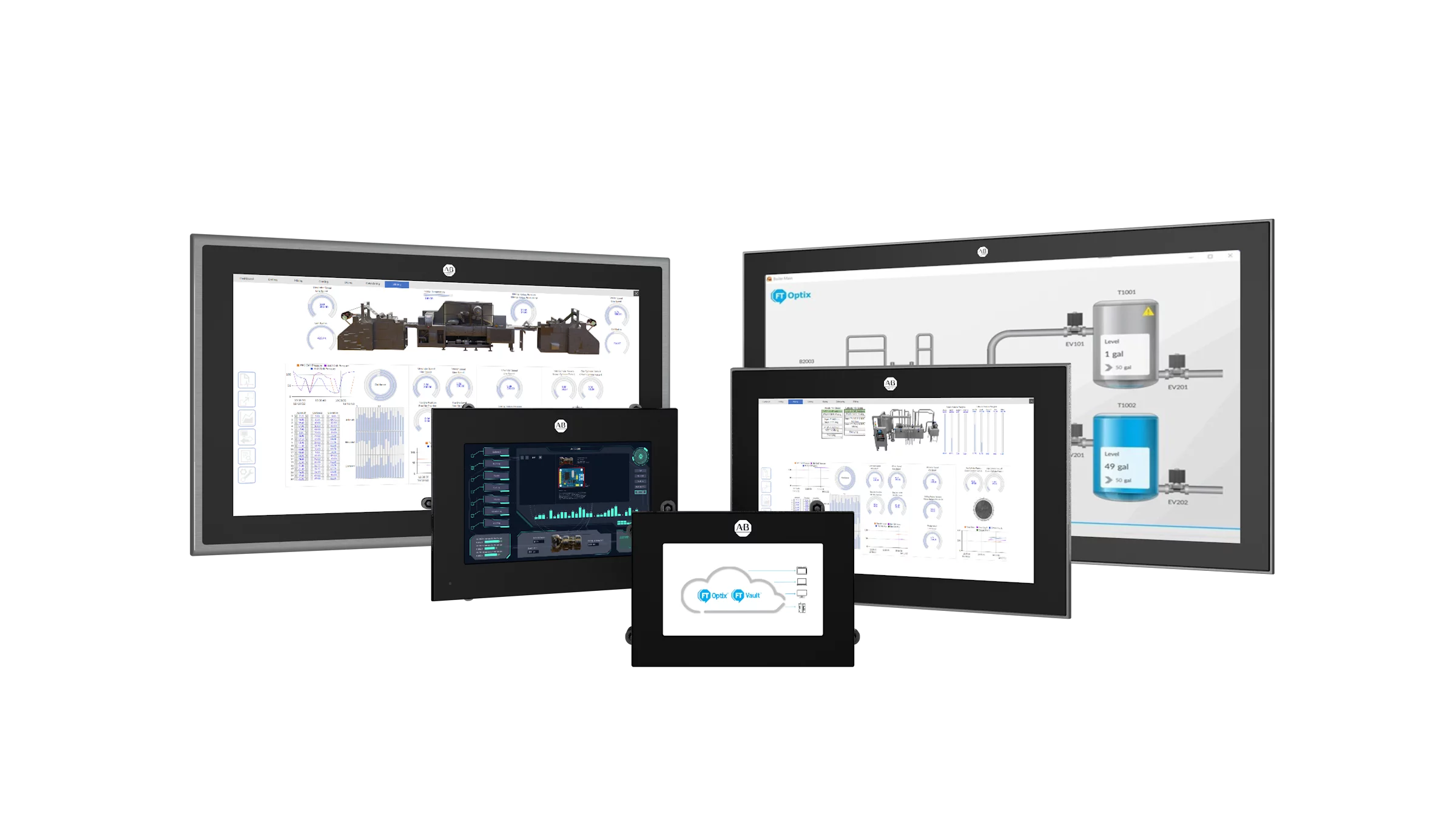

Hardware – OptixPanel Operator Panels

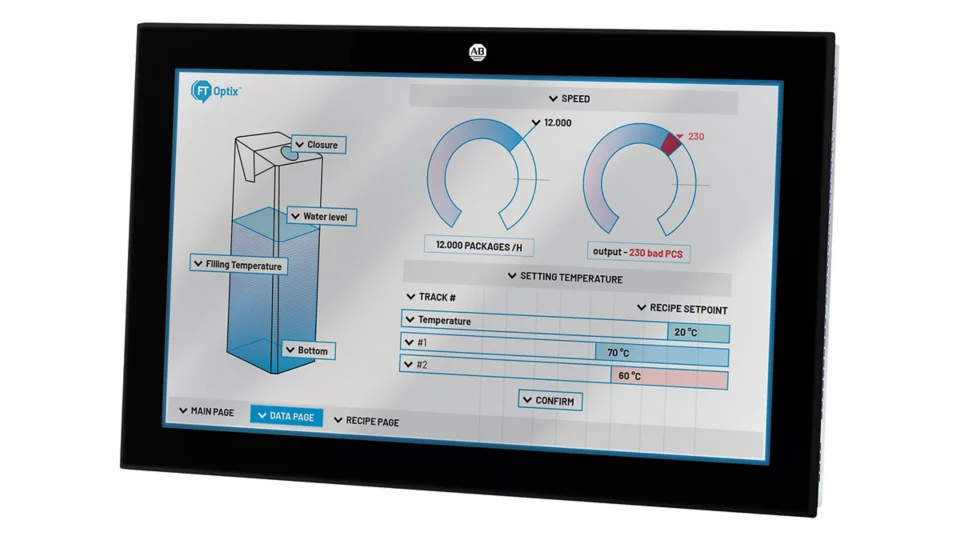

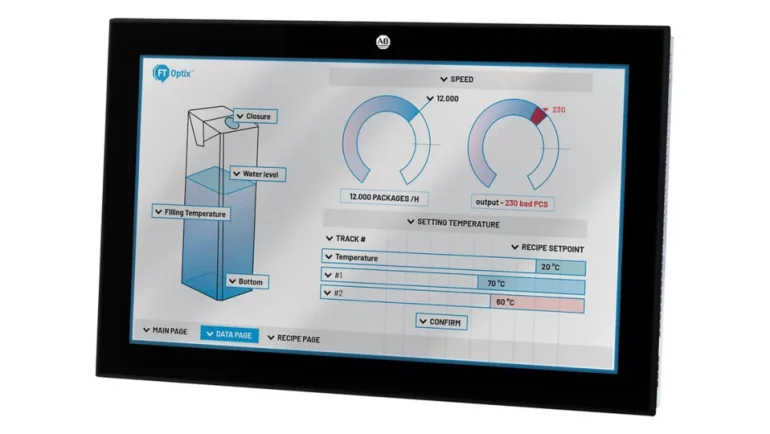

OptixPanel Standard
OptixPanel Standard is a range of industrial HMI panels designed for demanding production environments. It is available with widescreen displays from 7″ to 21.5″, with aluminum or stainless steel (IP69K) front frames suitable for washdown applications.
Key features:
- Display sizes from 7″ to 21.5″, widescreen or 4:3 format
- Aluminum or stainless steel IP69K construction
- PCAP multi-touch or resistive single-touch technology
Hardware configuration:
- Dual Gigabit Ethernet ports for network separation
- Two USB 3.0 ports
- One serial port (RS232 / RS422 / RS485)
Each panel comes with FactoryTalk Optix preinstalled, including:
- 11 functional tokens (expandable up to 15)
- FactoryTalk Remote Access Pro for remote diagnostics and support
OptixPanel Compact
OptixPanel Compact is designed for machine-level applications where space is limited, without compromising functionality.
Key features:
- 4.3″ and 7″ display formats
- Full compatibility with FactoryTalk Optix
- Ideal for compact HMI applications
Hardware configuration:
- One Gigabit Ethernet port
- One USB 2.0 port
- One serial port
This ensures consistency in software development across different machine sizes, simplifying maintenance and lifecycle management.
Typical Applications
FactoryTalk Optix is suitable for a wide range of industrial scenarios. In packaging and end-of-line machines, it enables compact HMI solutions with responsive graphics and fast format changes. In assembly lines and robotic cells, it supports multi-level SCADA architectures with centralized alarm handling.
In food & beverage and pharmaceutical environments, IP69K panels are suitable for washdown areas, while integrated data logging ensures traceability. For retrofit projects, FactoryTalk Optix simplifies migration from legacy systems thanks to OPC UA connectivity and deployment on existing industrial PCs.
Request Information about FactoryTalk Optix
FactoryTalk Optix is a flexible and modular platform, but every application has specific requirements in terms of architecture, runtime, hardware, and system integration.
By filling out the form, you can connect with the Edge Greece technical team to:
- Evaluate the most suitable system architecture
- Identify the correct FT Optix Runtime configuration
- Verify compatibility with existing systems or retrofit scenarios
- Select the most appropriate OptixPanel solution
Our technical team is available for a dedicated consultation focused on your specific application needs.
