Continuous thermal monitoring for electrical systems up to 600V
Electrical failures rarely happen without warning. In most cases, they are the result of gradual issues such as loose connections, uneven load distribution, or components operating under stress conditions.

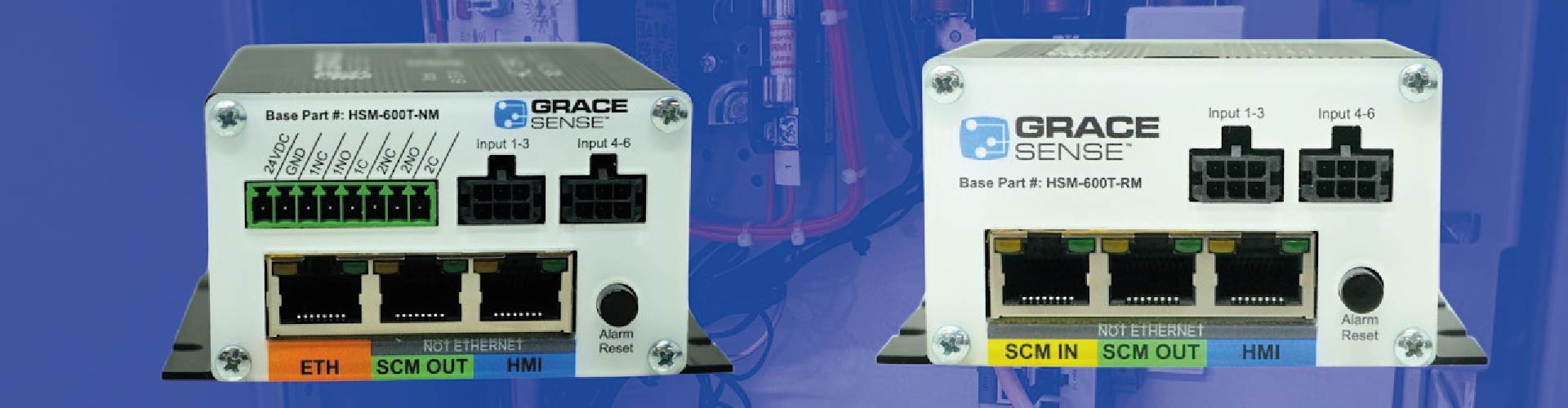

The GRACE Hot Spot Monitor HSM 600 is designed to address this challenge through continuous thermal monitoring of low-voltage electrical systems up to 600V. By detecting temperature variations at critical points in real time, it enables early intervention before faults escalate into downtime or safety hazards.
From scheduled checks to real-time awareness
Traditional maintenance often relies on periodic inspections. The HSM 600 shifts this approach by introducing a Continuous Thermal Monitoring (CTM) model that provides constant visibility into system conditions.
The solution is based on thermistor sensors installed directly on key components, including:
- electrical terminations;
- switching devices;
- busbar systems;
- identified Potential Failure Points (PFP).
These sensors operate continuously, delivering live temperature data and ensuring that no critical variation goes unnoticed.
Early warning system for safer operations
When temperature thresholds are exceeded, the HSM 600 triggers immediate alerts through:
- visual indicators;
- integrated alarm signals;
- instant notification of abnormal conditions.
This proactive approach allows maintenance teams to act before overheating leads to critical events such as equipment damage, fire, or arc flash incidents.
The benefit is clear: improved safety and greater operational stability, with fewer unexpected failures.
Advanced analytics with ΔT Trending
The HSM 600 enhances monitoring capabilities through ΔT Trending, a function that evaluates temperature deviations relative to ambient conditions.
This enables:
- early detection of abnormal thermal behavior;
- identification of gradual performance degradation;
- data-driven predictive maintenance strategies;
- alignment with NFPA 70B maintenance guidelines.
Phase comparison for deeper insights
In addition to absolute temperature monitoring, the HSM 600 analyzes differences between electrical phases.
This helps uncover:
- load imbalances;
- connection issues;
- uneven thermal distribution;
- components under abnormal operating conditions.
Thermal data becomes a diagnostic asset, supporting more informed operational decisions.
Quick setup and easy access
Ease of use is a key aspect of the HSM 600 design.
Configuration is performed directly via web browser, eliminating the need for proprietary software or dedicated applications. This reduces setup time and simplifies system management, allowing users to access monitoring data quickly and efficiently.
In industrial environments, where efficiency matters, this translates into faster deployment and lower operational friction.
Scalable architecture for complex systems
The HSM 600 supports daisy chain configurations, enabling multiple units to be interconnected.
This allows:
- expansion across multiple panels or zones;
- centralized monitoring of larger installations;
- flexible system design;
- easy scalability as operational needs evolve.
Main advantages
- Real-time continuous monitoring;
- permanent installation on critical components;
- reduced risk of electrical faults and fire hazards;
- immediate alerting system;
- support for NFPA 70B compliance;
- browser-based configuration;
- scalable deployment across different system sizes.
Thermal visibility is a key factor in risk management
The HSM 600 transforms temperature monitoring into a continuous control strategy. By providing constant insight into critical components, it supports predictive maintenance, enhances safety, and reduces the likelihood of unexpected electrical failures.
Contact our experts
The Edge Greece team supports system evaluation, architecture design, and the integration of the Hot Spot Monitor HSM 600 into both existing infrastructures and new projects.
